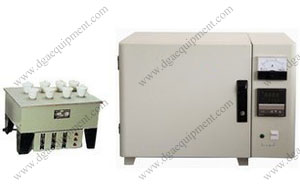

Model: K585A Ash Content Tester

Measures the ash content of petroleum products.It could not be used to measure the ash content of petroleum products which contains ash-forming additives (including some additives with phosphorus compounds); also it could not be used to measue the ash content of lubricating oil which contains lead and used engine crankcase oil.
Conform to ISO 6245 and related specifications.

Technical specification
(1) Muffle Furnace

Power supply: AC 220V, 50Hz

Heating range: ambient temperature --- 1000℃

Temperature control: 775℃±25℃

Temperature rising time: ≤ 60minutes

Furnace temperature uniformity: ≤ 15℃

Furnace chamber size: 200 x 120 x 80mm (Length x Width x Height)

Ambient temperature: 5℃ --- 40℃

Relative humidity: ＜ 80%

Dimensions: 490 x 450 x 450mm (Length x Width x Height)

Weight: 35Kg

(2) Temperature Controller

Power supply: AC 220V, 50Hz

Maximum temperatue: 1200℃

Dimensions: 320 x 315 x 245mm (Length x Width x Height)

Weight: 5Kg
