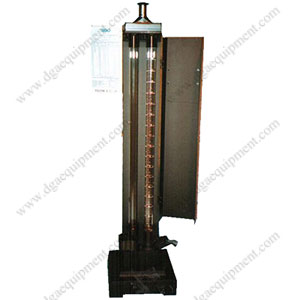

Model: K693 Saybolt Chromometer

Measures the Saybolt Color of refined petroleum products, such as undyed motor and aviation gasolines, jet propulsion fuels, naphthas, kerosene and petroleum waxes. It is used for quality control and product identification purposes on refined products having an ASTM Color of 0.5 or less.

Conforms to ASTM D156 and related specifications.


Technical specification
Sample color tube: Hard glass tube with scale. The lower part is equipped with liquid discharge valve. Glass tube inner diameter 16.5mm --- 17.5mm, outer diameter 21.3mm --- 22.7mm.
Standard color tube: Hard glass tube. Glass tube inner diameter 16.5mm --- 17.5mm, outer diameter 21.3mm --- 22.7mm
Standard color plate: Whole thick plate: 3 pieces; Semi-thick: 1 piece
Ambient temperature: 5°C - 40°C
Relative humidity: < 85%
Power supply: AC 220V, 50Hz
Dimensions: 160 x 160 x 690mm
Net weight : 6kg
