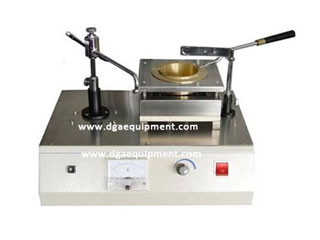

Model: K613S Cleveland Open Cup Flash Point Tester

Measures the flash points and fire points of all petroleum products, except fuel oils and those having an open cup flash below 79°C.

Conforms to ASTM D92 and related specifications. CE certification.

Consists of flame applicator, brass test cup (Cleveland open-cup), thermometer support, thermometer, heating plate and electric furnace. Flame applicator is precisely aligned for flame test application at a specific temperature. Hinged thermometer support raises to facilitate placement and removal of test cup. Flame size can be adjusted.

Technical specification

Power supply: AC 220V, 50Hz

Heating device: Quartz tube furnace heating

Thermometer: -6°C --- 400°C, scale division 2°C

Igniting device: Ignition sources are coal gas or other civil gas

Ambient temperature: -10°C - 50°C

Relative humidity: ≤ 85%

Dimensions: 350 x 290 x 350mm

Net weight : 8kg
