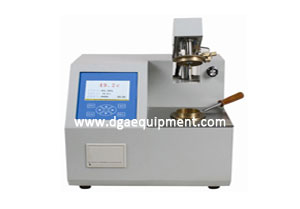

Model: K614 Automatic Pensky-Martens Closed Cup Flash Point Tester

For flash point determination of fuels, lubricating oils and other petroleum products.

Conforms to ASTM D93 and ISO 2719.


Auto-lifting, auto-temperature controlling, auto-igniting, auto-measuring, auto-printing and auto-cooling etc.;

Both temperature increasing speed and mixing speed are adjustable to suit various standards;

Automatic barometric correction;

Heating will be stopped automatically if the temperature surpasses the setting value;

Self-diagnostic function;

26000-color TFT screen display.

Technical specification

Maximum measuring flash point: 370℃

Measuring accuracy: flash point belows 110℃, ±1℃; flash point aboves 110℃, ±2℃.

Resolution (display): 0.1℃

Built-in forced-air cooling system

Integral thermal printer

Ambient temperature: 10℃ - 40℃

Relative humidity: 30% - 80%

Power supply: AC 220V, 50Hz

Dimensions: 370 x 340 x 310mm

Net weight : 11.7kg
