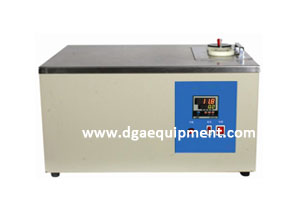

Model: K682 Cloud Point, Pour Point and Solidifying Point Apparatus

Measures the cloud point, pour point and solidifying point of lubricating oils and other petroleum products.

Cloud point and pour point are indicators of the lowest temperature of utility for petroleum products. The sample is periodically examined while it is being cooled in the cloud and pour point apparatus. The highest temperature at which haziness is observed (cloud point), or the lowest temperature at which movement of the oil is observed (pour point), is reported as the test result, or the highest temperature at which stopping movement of the oil is observed (solidifying point).

Conforms to ASTM D97, ASTM D2500 and related specifications.

Technical specification

Minimum temperature control: -70°C

Resolution: 0.1°C

Refrigeration mode: Compressor refrigeration

Working chamber: 1 chamber with 2 cold baths

Timing: 60.0s (0.1s interval)

Ambient temperature: 10°C - 40°C

Relative humidity: 30% --- 80%

Power supply: AC 220V, 50Hz

Dimensions: 600 x 500 x 350mm

Net weight: 50kg
